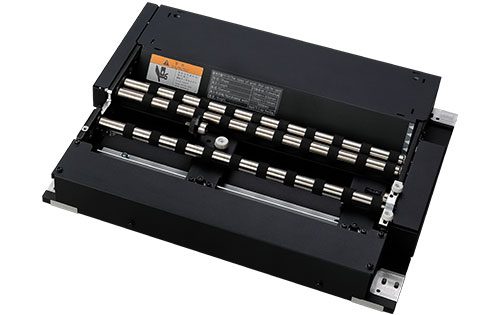

Kebab

360-Degree direct printing on cylindrical products

The Kebab options enables printing directly onto cylindrical objects such as stainless steel drink tumblers and glass bottles.

360-Degree printing
Printing on a wide
range of material sizes
Easy and precise mounting on the printer bed
  • 360-degree direct UV LED printing on cylindrical objects
  • Printing on a wide range of material sizes such as tumblers, water bottles, candles, cans, etc.
  • Easy and precise mounting on the printer bed via threaded registration points
  • User-friendly print settings and functions via RasterLink6 software
  • Intuitive and user friendly operation

Print on…

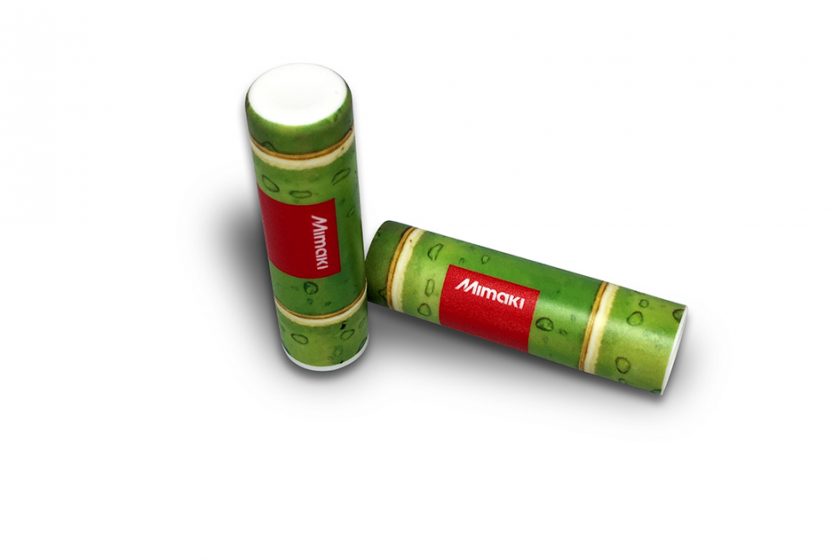

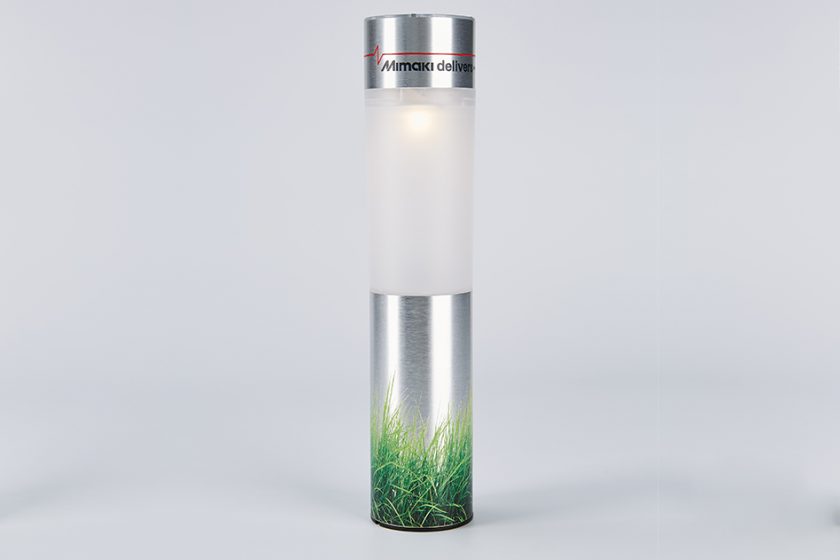

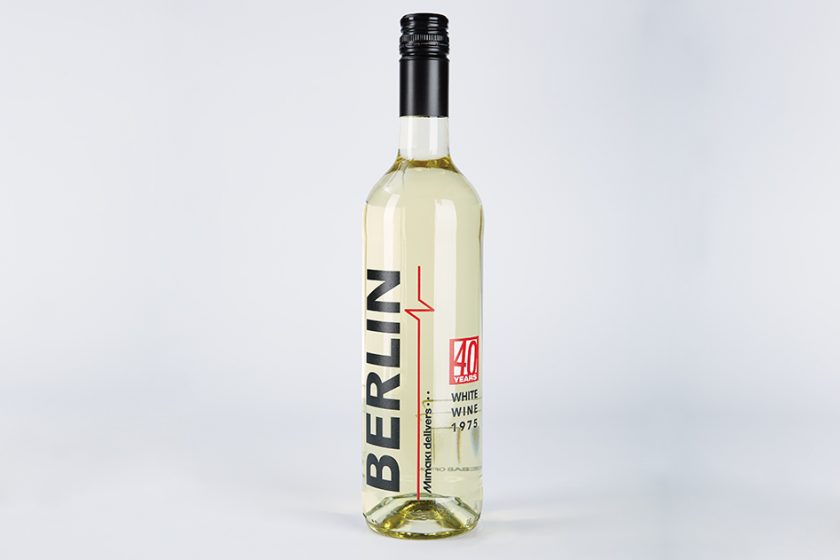

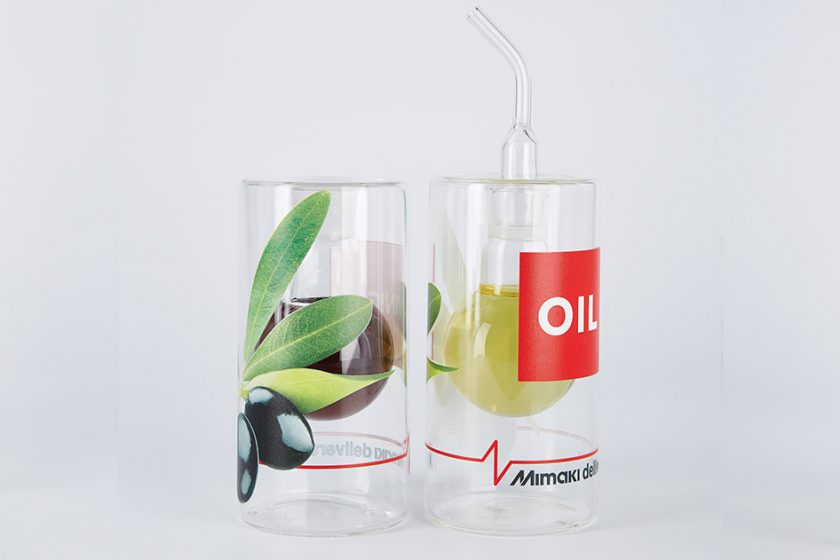

Glass Bottles, Aluminum Containers, Stainless Steel Tumblers, Decorative Candles and more…

Specifications of Kebab


KebabKebab MKIIKebab MKII L
Part numberOPT-J0350OPT-J0428OPT-J0427
Supported machinesUJF-6042, UJF-3042 HGUJF-3042 MkIIUJF-6042 MkII, UJF-7151 plus
Maximum media rotation360° or more (no limitation)360° or more (no limitation)360° or more (no limitation)
Rotation method of mediaFriction of rollerFriction of rollerFriction of roller
Media shapeCylindricalCylindricalCylindrical
Media sizeSmall Diameter
Large diameter
Width
.39 – 2.52 inches (10 -64.2mm)
2.53 – 4.33 inches (64.3 – 110mm)
1.18 – 12.99 inches (30 – 330mm)
.39 – 2.52 inches (10 -64.2mm)
2.53 – 4.33 inches (64.3 – 110mm)
1.18 – 12.99 inches (30 – 330mm)
.39 – 2.52 inches (10 – 64.2mm)
2.53 – 4.33 inches (64.3 – 110mm)
1.18 – 23.62 inches (30 – 600mm)
Print areaFeed (X) direction
Feed (X) direction
360° or more (no limitation)

12.99 inches (300mm) or less
360° or more (no limitation)

12.99 inches (300mm) or less
360° or more (no limitation)

23.62 inches (600mm) or less
Max media weightSmall Diameter
Large diameter
4.4 lbs (2.0kg) or less
4.4 lbs (2.0kg) or less
3.3 lbs (1.5kg) or less
4.4 lbs (2.0kg) or less
3.3 lbs (1.5kg) or less
4.4 lbs (2.0kg) or less
InterfaceDedicated connectorDedicated connectorDedicated connector
WeightApprox. 6.6 lbs (3kg)Approx. 6.6 lbs (3kg)Approx. 13.22 lbs (6kg)
Dimensions (W x D x H)
16.14 x 13.4 x 2.24 inches
410 x 340 x 57mm
14.4 x 11.8 x 1.9 inches
366 x 301 x 50mm
26.53 x 11.8 x 1.9 inches
674 x 301 x 50mm

Features of Kebab

Printing 360 degree on the surface of a cylindrical objectkebab-printing on curve surface

Mount the Kebab on a compatible printer (see specifications), set the product on the rollers, and start the automatic 360 degree printing using the dedicated software “RasterLink 6”.

  • Beautiful seamless 360 degree surface printing with simple steps.
  • Digital-on-demand UV printing enables to produce customized print products with a minimum order quantity from one piece.
  • Using the special software will automatically start printing on the entire 360º surface of your desired object.

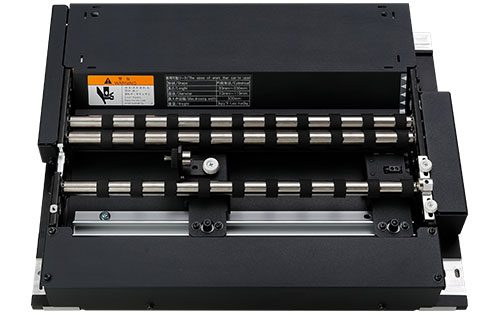

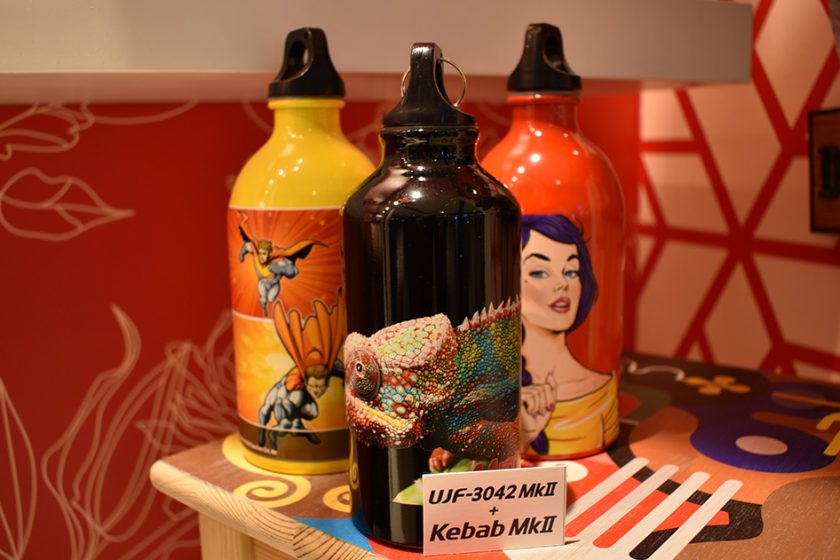

Kebab MkII, made for UJF-3042MkII, can print on objects up to 300mm length with diameters from 10 mm to 110 mm.

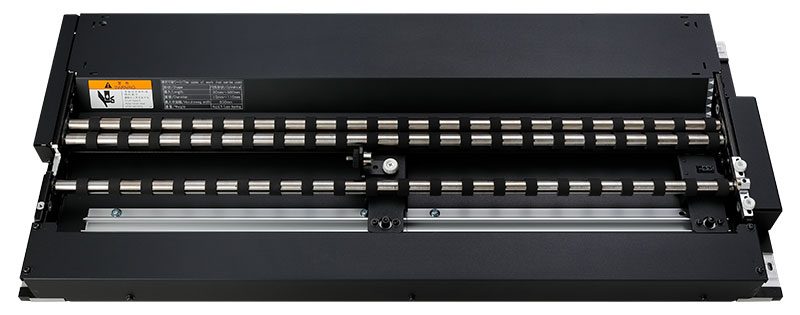

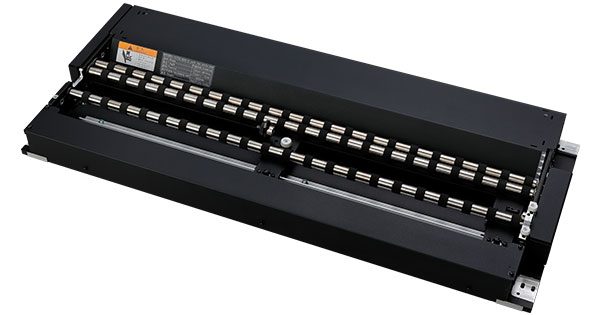

Kebab MkII L, made for UJF-6042MkII and UJF-7151 plus, can print on objects up to 600mm length.




Easy mounting*

Setting up Kebab on a compatible printer is very easy. Just mount it on the printer, screw on the unit, and insert a connector.
* In order to use KEBAB, PCB of the printer must be replaced by a technician.

Mimaki Kebab option


rasterlink-6

Rasterlink 6 makes print job management simple

KEBAB dedicated function: Print image measuring
Outer circumference of a print object is automatically calculated by entering a diameter on the dedicated screen, and the ruler with a calculated circumference is displayed beside the print image accordingly.

KEBAB dedicated function: Image scaling function
Print image is automatically scaled according to the calculated outer circumference. No caliculation and scaling is required.

Web update function
The highly reputable web update function from RasterLinkPro5 is available. Program updating and profile downloading can easily be done through the Web.

Dramatically‑improved, user‑friendly operation screen increases work efficiency
High performance, easy-to-use RIP software. The Rasterlink6 is the RIP software for everyone–it is designed with a focus on simplicity and usability. However, the software also helps to create more professional and advanced finished products.

Intuitive and user‑friendly operation

  • The surface of the print object is automatically calculated by entering the diameter on the dedicated screen. A ruler with the calculated circumference will be displayed beside the print image accordingly.
  • Related settings are indicated on the same display screen, reducing the need to switch screens. Furthermore, print settings can be marked as “Favorite”
  • rasterlink-6

Yüklemeler

Kebab Manual

Kebab MKII Manual
