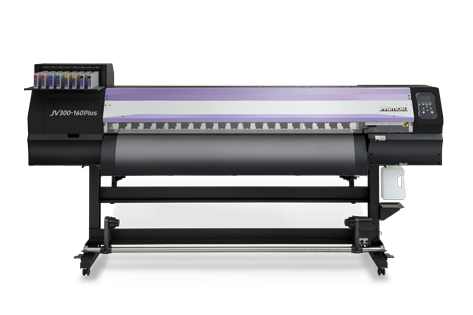

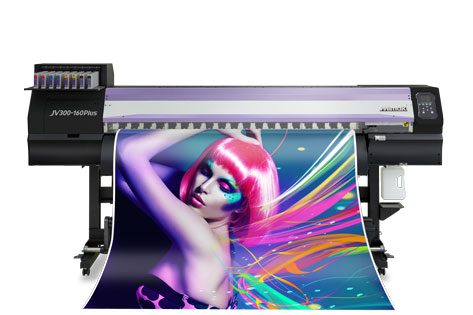

JV300-160 Plus
Yüksek kaliteyi yüksek hızda sunan geniş format inkjet baskı makinesi
En son Mimaki Gelişmiş Pass Sistemi (MAPS4) sayesinde, yeni JV300-160 Plus yüksek kaliteli baskıyı daha yüksek bir baskı hızında sunar. Eko solvent boyalarla birleştirilmiş yüksek baskı verimliliği ile hem ekolojik hem de ekonomik faydalar sağlar. Ayrıca malzemenin kaymasını önleyen ve pürüzsüz üretim yapılmasına olanak veren, 45 kg’a kadar ruloları taşıyabilen yeni bir sarma aparatı ile birlikte gelmektedir.
|
|
|
|
|
|
Yaratın…
Tabelalar, araç grafikleri, PoS ürünleri, afişler, posterler, moda & spor giyim, promosyon ürünleri, sergi grafikleri, etiketler, konfeksiyon kalıpları, kanvas baskılar ve çok daha fazlası…
JV300-160 Plus süblimasyon transfer baskıda ve iç mekan grafiklerinde de kullanılabilmektedir.
Teknik Özellikleri
| Ürün | JV300-160 Plus | |
|---|---|---|
| Baskı kafası | On-demand Piezo baskı kafası (2 adet çapraz dizilimli baskı kafası) | |
| Baskı çözünürlüğü | 360dpi, 540dpi, 720dpi, 1,080dpi, 1,440dpi | |
| Maks. baskı genişliği | 1,610mm | |
| Boya | Tip / Renk | Eko-solvent boya: SS21 (C, M, Y, K, Lc, Lm, Lk, Or, W) BS3 (C, M, Y, K) BS4 (C, M, Y, K) ES3 (C, M, Y, K, Lc, Lm, W) Su bazlı süblimasyon boya: |
| Paketi boyutu | SS21: 440ml Kartuş / 600ml Boya paketi / 2L Boya paketi*1 (Yalnızca W 220ml kartuş) ES3: 440ml Kartuş (Yalnızca W 220ml kartuş) BS3: 600ml Boya paketi / 2L Boya paketi**1 BS4: 600ml Boya paketi / 2L Boya paketi*1 Sb54: 440ml Kartuş / 2L Boya paketi*1 | |
| Boya Sirkülasyonu | MCT (Mimaki Sirkülasyon Teknolojisi)*2 | |
| Malzeme | Maks. genişlik | 1,620mm |
| Kalınlık | 1.0mm veya daha az | |
| Rulo malzeme ağırlığı | 45kg veya daha az | |
| Uyumlu standartlar | VCCI (A sınıfı), FCC (A sınıfı), ETL IEC 62368-1, CE Belgesi (EMC, Düşük voltaj, Makine direktifi), CB Raporu, RoHS, REACH ve Energy Star, RCM, EAC | |
| Arayüz | USB 2.0, Ethernet 1000BASE-T | |
| Güç kaynağı | Tek faz (AC100-120V) / AC200-240V) x 2 50Hz / 60Hz ±1Hz 1Hz | |
| Güç tüketimi | 1440W x 2 veya daha az (AC100V) / 1920W x 2 veya daha az (AC200V) | |
| Çalışma ortamı | Sıcaklık | 20 ~ 30°C |
| Nem | %35 ~ 65Rh (Yoğuşmasız) | |
| Hassas çalışma sıcaklığı | 20 ~ 25°C | |
| Sıcaklık değişim aralığı | Saatte ± 10°C aralığında | |
| Toz | Standart ofis ortamıyla eş değer | |
| Boyutlar (E x B x Y) | 2,775 x 700 x 1,392mm | |
| Ağırlık | 200kg | |
*1 2L boya paketlerinin kullanımı, opsiyonel MBIS3 dökme boya sisteminin kurulmasını gerektirir.
*2 Yalnızca beyaz boyada kullanılır.
Sarf Malzemeleri
| Ürün | Renk | Açıklamalar |
|---|---|---|
| SS21 | Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta, Light Black, Orange | 440ml kartuş / 600ml paket / 2000ml paket |
| White | 220ml kartuş | |
| BS3 | Cyan, Magenta, Yellow, Black | 600ml paket / 2000ml paket |
| BS4 | Cyan, Magenta, Yellow, Black | 600ml paket / 2000ml paket |
| ES3 | Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta | 440ml kartuş |
| White | 220ml kartuş | |
| Sb54 | Blue, Magenta, Yellow, Black, Light Blue, Light Magenta | 440ml kartuş / 2000ml paket |
Features of JV300-160plus
With the latest Mimaki Advanced Pass System (MAPS4), the new JV300-160plus produces high quality printing at a faster printing speed. The enhanced work efficiency combined with eco-solvent inks, offers both ecological and economical benefits. It also comes with a new take-up device capable of handling rolls up to 45kg, which prevent media shifting and ensure smooth production.
Choose between solvent or dye sublimation
Solvent
- From text and illustrations to photographs, the combination of Mimaki’s unique inkjet technology and solvent ink delivers vibrant high quality print results
Dye sublimation
- The combination of fast drying water based sublimation ink and Mimaki inkjet technology produces beautiful, high-quality vibrant colour printing on polyester fabrics
600ml eco pack
SS21 ink is now available in eco-friendly 600ml packs
- The new SS21 600ml ink pack reduces ink costs by approximately 15% compared to the previous 440ml packs
- Higher ink capacity reduces the need to replace the cartridge, making it efficient and economical
- Mimaki eco cases are reusable for the larger 600ml ink bags
- 600ml packs are available in CMYK only, but can be combined with 440ml cartridges of other colours
Stunning quality with SS21 inks
SS21 with orange ink
- Newly formulated SS21 orange ink, SPC‐0501Or‐2, provides a wider colour gamut range, enabling higher colour accuracy, better vibrancy, smoother image gradations and greater outdoor durability
- Covering approx. 94.8% of the PANTONE coated colour chart, 7% more compared to 4C
- The large colour gamut makes it possible to reproduce more corporate colours
SS21 with light black ink
- High quality monochrome colour reproduction with the new Light-Black ink
- High colour balance without colour shifting, reproducing high quality, smooth grey output
SS21 high density white ink
- Vivid colour printing on transparent/coloured media, by under-laying white ink before printing the colours
- Higher opacity is attained by using a larger ink droplet
New take-up device
Heavy take-up device
- An improved standard-included take-up system designed for handling a wide range of media up to 45kg
Newly designed Media Edge Guide
- A standard accessory that guides the media during take-up and results in perfect winding without skewing
NCU and NRS
Automatic maintenance for uninterrupted printing
- Continuous unattended operation by combining the Nozzle Check Unit (NCU) and Nozzle Recovery System (NRS)
- Requires less operator maintenance time and less media waste, compared to competitors
MAPS4 for high image quality
Reduce printer banding with MAPS4
- The potential for banding and uneven colour is greatly reduced with the 4th generation of Mimaki’s Advanced Pass System, MAPS4
- MAPS incorporates an advanced algorithm for printing boundaries between passes, giving you beautiful quality prints with a smooth appearance
- Compared to MAPS3, MAPS4 allows you to print even faster while preventing banding
Print head durability
White ink with Mimaki Circulation Technology (MCT)
- MCT accomplishes stable production and reduction of ink discharge and waste
- Prevents pigment sedimentation by periodically circulating the white ink in the ink tank and through the ink tubes
Automatic Wiper Cleaning
- The rest ink on the wiper is automatically removed during the cleaning procedure of the print head
- No damage to print head caused by a dirty wiper
- Less daily maintenance while enlarging the lifetime of the print head
ID cut for Mimaki’s print and cut combo
Automate the cutting process
- Using ID CUT function enables an operator to contour cut multiple jobs without intervention
- Trouble-free cutting without operator mistakes, saving time and material waste
Workflow
- Generate your labels with FineCut9
- RL6 Plus prints the ID code between the crop marks
- ID code includes cutting and rotation information
- The crop mark sensor reads the ID code and automatically executes cutting
Mimaki eco & mild solvent inks are GREENGUARD Gold certified.
JV300-160plus ink Sb54 is ECO PASSPORT by OEKO-TEX® certified.
Mimaki’s JV300-160plus compatible SS21 mild solvent ink meets the chemical requirements of the Nordic Swan Ecolabel program for printing companies.
