Print and cut with precision. The optimal cooperated performance.
More simple, more accurate. The Mimaki CF22-1225 is a flatbed cutting plotter based on cooperation with inkjet printers focusing to enhancement of usability. Supports multiple functions for on-demand production of packaging, POP and furniture including reciprocating, swivel and tangential cutting, as well as creasing and line drawing.
Packaging, Cushioning material, furniture, posters, cut-out panels, POP, life sized panels, hanging signboards and much more…
Corrugated cardboard, PP/PET or clear film (up to 0.3mm thickness), vinyl chloride for clear packaging and corrugated fiberboard (AB flute).
|Effective plotting area||2,500 × 1,220mm|
|Maximum media size||2,600 × 1,360mm|
|Motorization||X/Y/Z/Θ axis: DC Servo Motor|
|Maximum plotting speed||55cm / sec|
|Cutter head type||RC Head|
|Cutting pressure||Eccentric Cutter||20 – 400g|
|Low Pressure Tangential||300 – 1,500g|
|High Pressure Tangential||1,000 – 5,000g|
|Creasing Roller||1,000 – 5,000g|
|Static Accuracy||Repetition accuracy||±0.1mm|
|Distance accuracy||±0.1mm or ±0.1% of movement distance,|
whichever is greater
|Origin reproducibility||±0.1mm or less|
|Perpendicularity||±0.7 / 2,500mm|
|Work fixation||Vacuum suction by blower|
|Receiving buffer capacity||27MB (17MB while sorting)|
|Interface||USB 2.0 (Full Speed), RS-232C, Ethernet|
|Safety standard||VCCI-class A, FCC-class A, UL60950-1,|
CB Report (EN60950), CE Marking
(Machinery), RoHS, REACH
|Temperature||5 to 40°C|
|Humidity||35 to 75%RH (Non condensing)|
|Accuracy guaranteed temperature||20 to 25°C|
|Temperature gradient||±10°C/h or less|
|Power||Single phase AC100V to 240V|
|Outer dimension (W×D×H)||3,160 x 1,930 x 1,200mm|

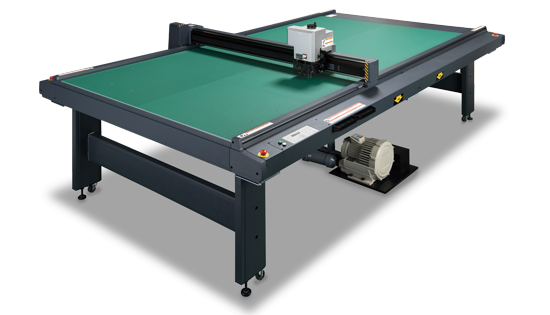

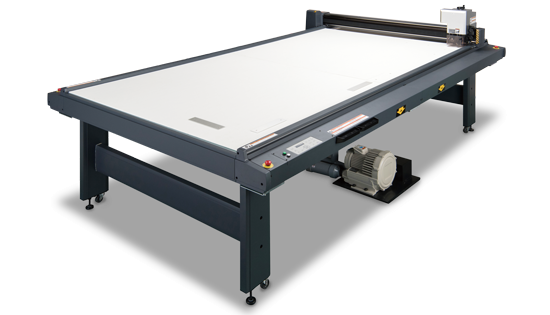

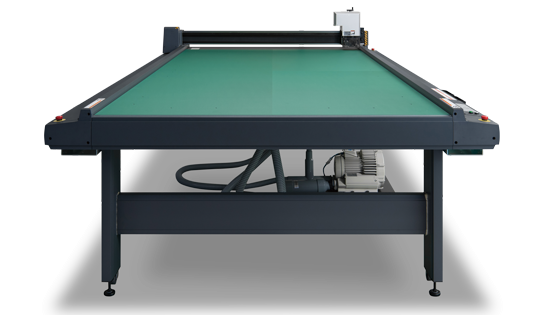

Features of CF22-1225
Multifunctional large format flatbed cutting plotter
More simple, more accurate. The CF22-1225 is a flatbed cutting plotter based on cooperation with inkjet printers focusing to enhancement of usability.
Perfect for cutting 8’ x 4’ (1,220 x 2,440mm) printed board. Includes a zoned vacuum system to hold the media operated via a control panel. Select the best cutter head type to fulfill your needs according to your cutting material and application.
Powerful print and cut combo with JFX200-2513
Together with the Mimaki JFX200-2513 UV LED flatbed printer, the CF22-1225 offers a powerful, cost-effective print and cut solution.
With a maximum print area of 2.5m x 1.3m, the JFX200-2513 is the perfect fit for the CF22-1225. Offering the ability to print to a wide range of substrates, the class-leading LED UV flatbed printer delivers unparalleled performance and productivity for professional sign and graphic companies.
Making print and cut easier than ever before (ID Cut)
Utilising powerful software options, ArtiosCAD for Mimaki is intuitive and simple to use. Supplied with around 400 templates, it is easy to customise the packaging design by entering dimensions in order to produce output at the desired size.
Mimaki’s new ID Cut function has been designed to enable printer operators to contour cut multiple jobs with minimal intervention. Offering trouble-free, automatic cutting of consecutive jobs, it saves time and reduces potential material waste.
An ID barcode is printed through the RasterLink6 Plus RIP along with the image, with the code including cutting and rotation information. The crop mark sensor reads the ID code and automatically executes cutting, ensuring all alignment and rotational requirements are observed.
Complete custom production solution
Combined with the optional ArtiosCAD Designer Solution, Mimaki-dedicated CAD design software, the combination of CF22-1225 and JFX200-2513 delivers the perfect solution for the production of custom printed and cut graphics and products. This includes printing onto the goods, designing and printing the packaging and cutting the cushioning material.
1: Packaging (JFX200 + CF22 + CAD)
2: Cushioning Material (JFX200 + CF22)
3: Product Dispenser (JFX200 + CF22 + CAD)
4: Poster (JFX200 + CF22)

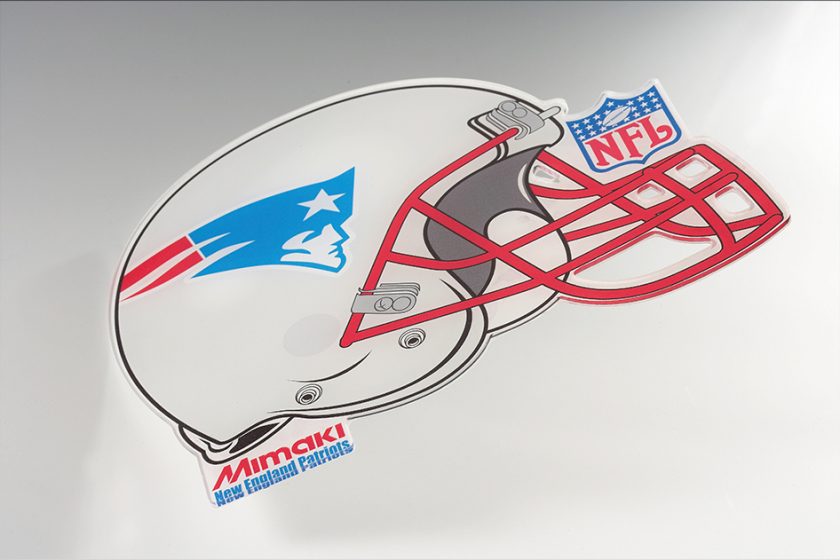

5: Cut-out Panel (JFX200 + CF22)
6: Point of Sale Material (JFX200 + CF22)
7: Life-sized ‘Standee’ (JFX200 + CF22)
8: Suspended Signage (JFX200 + CF22)
Multiple tools and functions for on-demand production
The Mimaki CF22-1225 supports multiple functions for on-demand production of packaging, POP, furniture, cut-out panels, hanging signboards and more.
It includes a detachable tool holder supporting a wide range of cutting tools including reciprocating, swivel and tangential cutting, as well as creasing and line drawing. Thus, ideal for the cutting of corrugated cardboard, PP/PET or clear film (up to 0.3mm thickness), vinyl chloride for clear packaging and corrugated fiberboard (AB flute).
