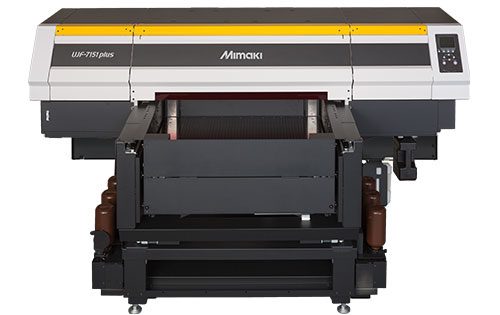

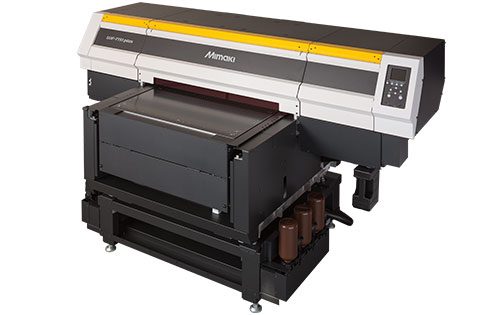

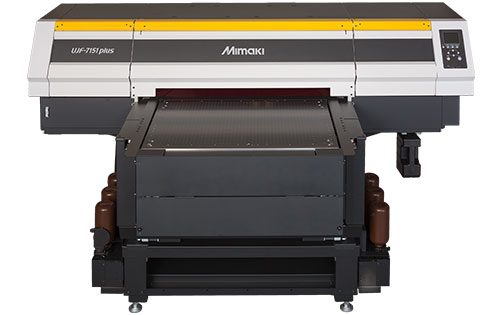

UJF-7151plus

Malzemeye doğrudan baskı yapabilen yeni nesil endüstriyel flatbed UV-LED baskı makinesi

Kompakt UV-LED malzemeye doğrudan baskı teknolojisinin eşsiz mirası üzerine geliştirilen UJF-7151plus, Mimaki’nin hızla gelişen baskı sektöründeki üstünlüğünü tekrar kanıtlıyor. Endüstriyel üretim seviyelerinde en yüksek kaliteli baskı sonuçlarıyla, UJF-7151 plus geleneksel serigrafi baskı işlemlerine güçlü ve güvenilir bir dijital alternatif sunmak için en gelişmiş teknolojiyi kullanıyor.

Kalın yüzeylere doğrudan baskı
Yüksek baskı hızları
Geniş baskı alanı
  • 1,200 dpi’ye kadar hassas boya damlası atışı
  • 6 adet çapraz dizilimli baskı kafası
  • 710 x 510 mm’lik geniş baskı alanı
  • Üstün görüntü kalitesi kontrol teknolojisi (MAPS4 & MFD1)
  • 153mm kalınlığa kadar malzemelere doğrudan baskı yapabilme özelliği
  • Hassas üretim sonuçları için üst düzey endüstriyel tasarım
  • Process boya, Beyaz & Lak boya ve Primer baskı
  • Önceki modellere göre iki kat daha yüksek baskı hızı

Yaratın…

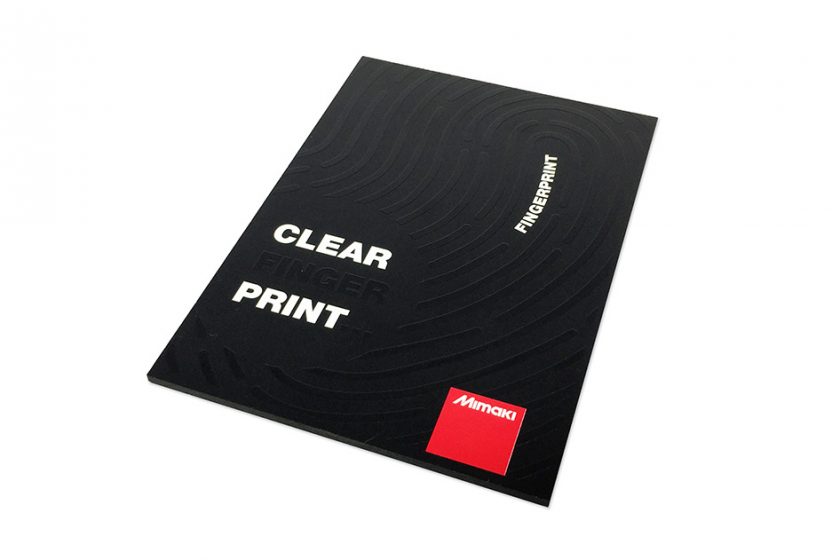

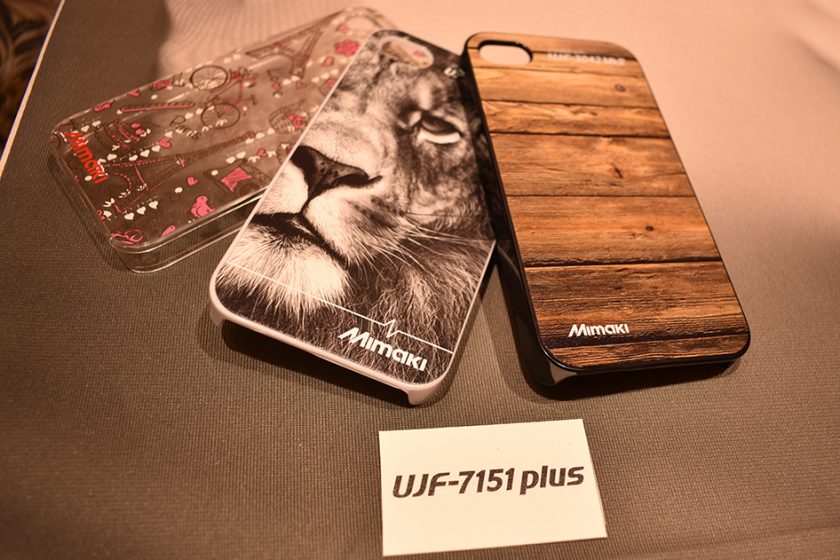

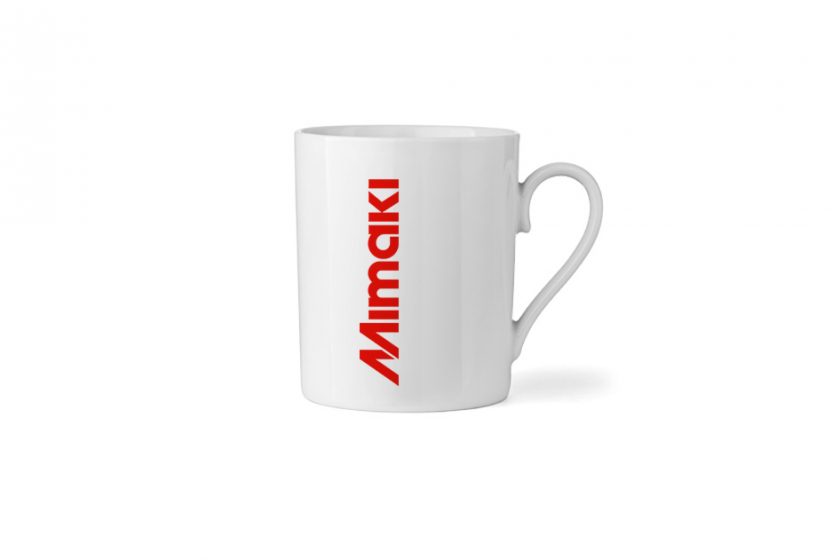

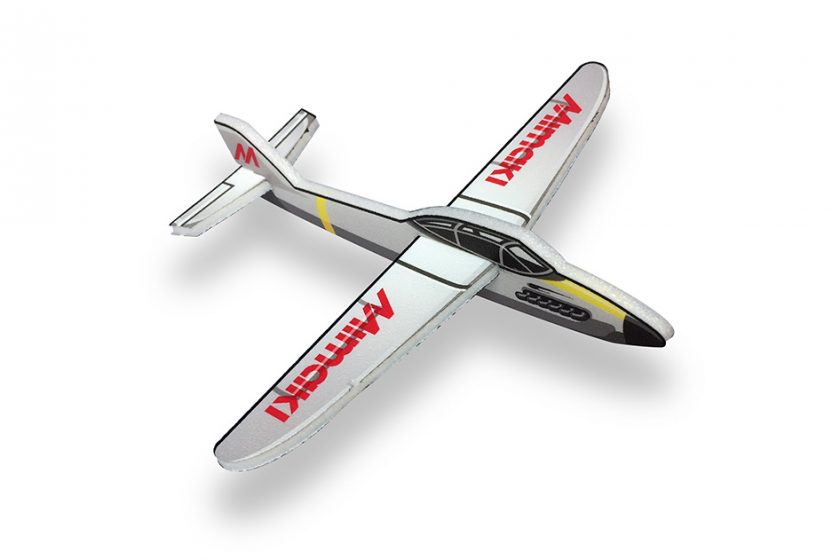

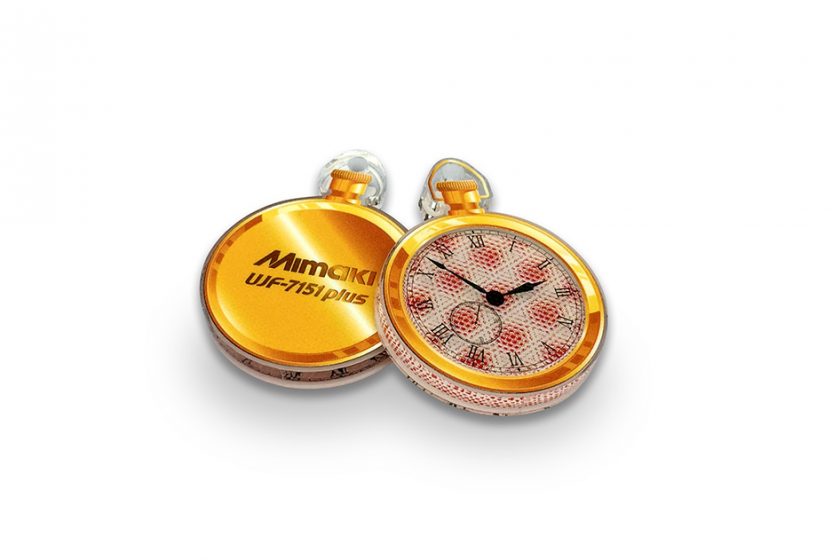

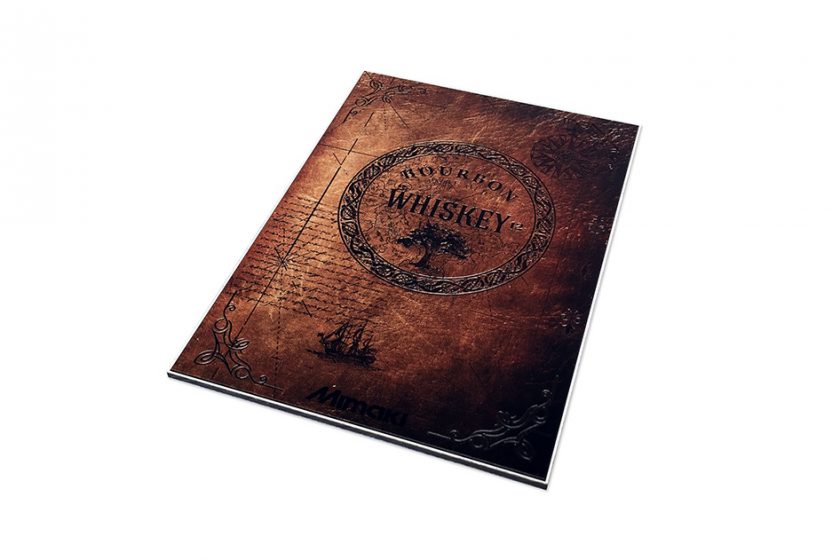

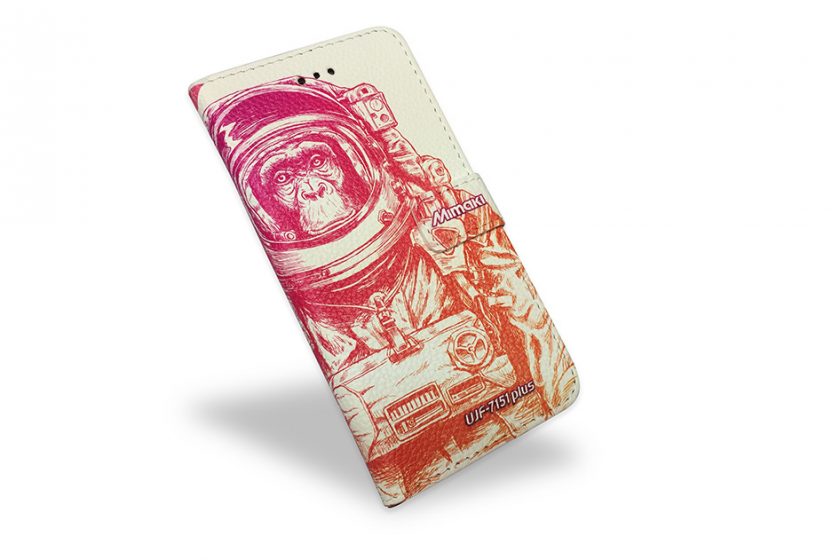

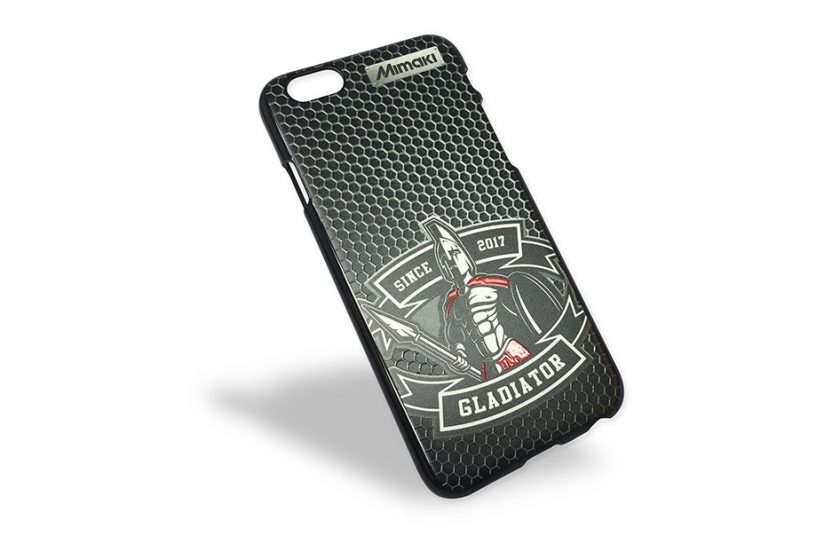

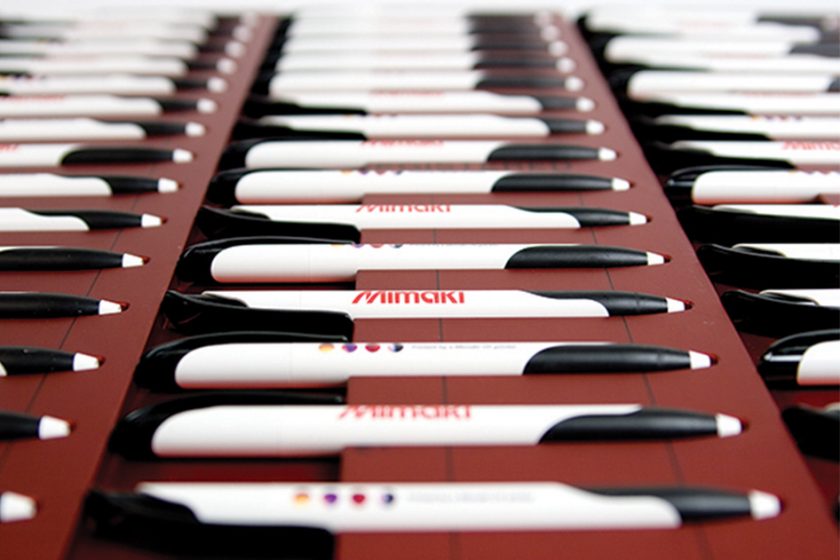

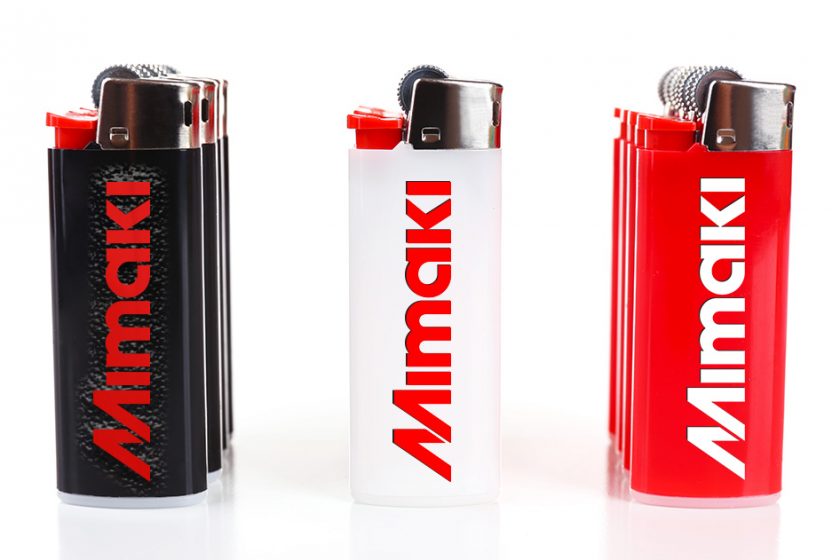

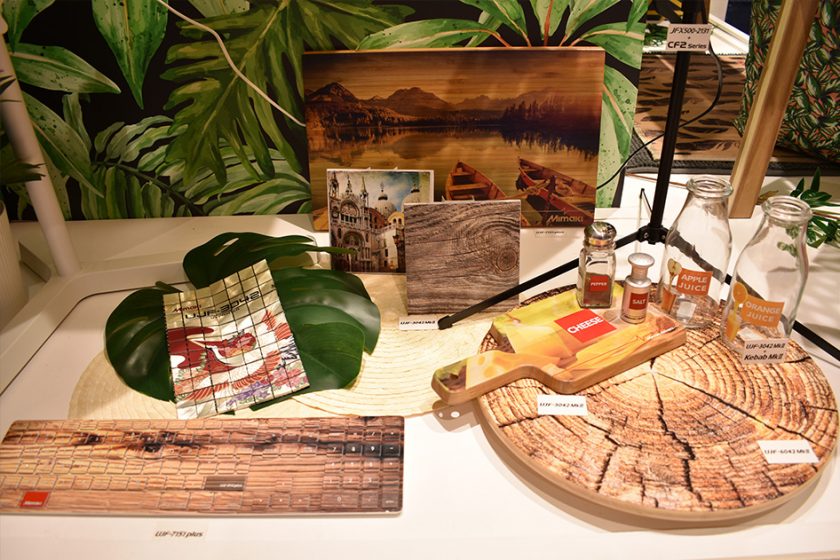

Promosyon ürünleri, kişiselleştirilmiş hediyelik eşyalar, ısmarlama ürünler, paneller, kalemler, kutular, küçük-orta format sert tabelalar, alet & gösterge yüzleri, özel parçalar, markalı elektronik cihaz kılıfları ve kapakları ve çok daha fazlası…

Teknik Özellikleri


Print headOn-demand piezo head (6 staggered printheads )
Maximum print area710 × 510mm
Printing resolutions1,200dpi
Ink typeLH-100 (C, M, Y, K, W, Cl)
PR-200 (Primer)
Ink capacity1L bottle
Media size710 × 510mm or smaller
Media thickness
Media weight10kg or less
UV deviceUV LED
InterfaceUSB 2.0 Hi-speed / Ethernet 1000BASE-T
Power consumption1.3 kW
Dimensions (w x d x h)<2,198 × 1,572 ×1,273mm
Weight<317kg (Base stand weight is included)










UJF-7151plus inks: LH-100 & LUS-120 are GREENGUARD Gold certified.



Nitelikler

High quality industrial construction

UJF-7151 plus
Delivers precision output
In order to reduce printer unit vibration, the print table moves during printing instead of the Y-bar. Two ball screws are installed on both sides of the table to assist with its movement. In addition, four motor-driven legs are added beneath the table to maintain its horizontal position when the table is lifted or lowered, resulting in a more precise droplet placement and higher quality print output.




Uninterrupted printing features

Uninterupted-printing-solutions
Maintain high productivity levels
In the event of a nozzle malfunction not being repairable by the use of the maintenance function, printing can continue by the use of another nozzle, without any loss of productivity or a reduction in image quality.

Ink Circulation System
Located in the print head reduces ink settling and provides stable ink jetting. In addition, the system removes air bubbles, which plug the nozzle. Nozzle-cleaning frequency is thereby reduced, resulting in a more cost-effective and stable print output.


MAPS4 Advanced Pass System

(MAPS4)
Mimaki’s unique anti-banding feature, MAPS4 is a more advanced version of MAPS3. To prevent banding, swath boundaries are overprinted and boundaries prone to banding are printed with fewer ink droplets.




MFD1—Mimaki Fine Diffusion 1

mfdi
Dithering is an image processing technique, which transforms image data for inkjet printing. Pattern and error-diffusion dithering may, however, generate particular image noise resulting in uneven colour printing or tone jumps, even on a high-performance printing unit.

New RasterLink 6 software*, incorporates patented* image-processing MFD1, which reduces noise due to dithering through hybrid processing of pattern- and error-diffusion dithering, thereby enhancing print quality.

* MFD1 is available for Version 4.0 and higher
* Patent number: 5230816


Mimaki ECO iconEnvironmentally-friendly Technology

  • UV LEDs have longer life and consume less energy than conventional UV lamps
  • Less transfer waste and no wasted inventory by printing on-demand, direct-to-substrate
  • No noticeable odour and no excessive noise










UJF-7151plus inks: LH-100 & LUS-120 are GREENGUARD Gold certified.
