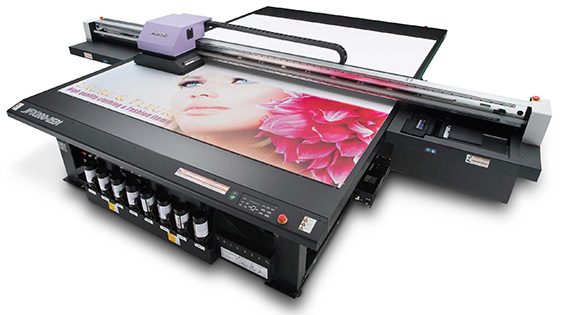

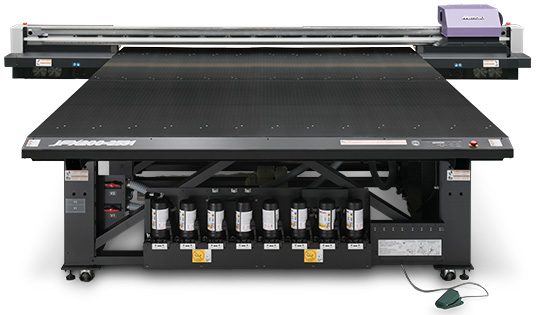

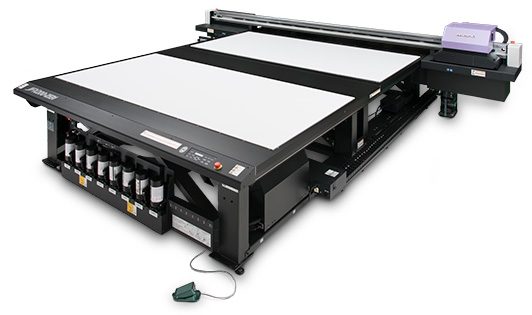

JFX200-2531

Yüksek Performans Large Flatbed LED UV Baskı Makinesi

Sınıfının lideri Mimaki JFX200 Serisi LED UV baskı makinelerine JFX200-2531 eklenerek genişletildi. JFX200-2531, JFX200-2513 modeline kıyasla iki baskı alanına sahiptir. Bu büyük baskı alanı ve bazı yeni özellikleri sayesinde JFX200-2531, profesyonel tabela ve grafik şirketleri için benzersiz performans ve üretkenlik sunar..

  • Yüksek üretim modunda saatte 25m2’ye ve eş zamanlı beyaz boya baskısıyla saatte 12.5m2’ye varan baskı hızları
  • Maks baskı alanı 2.5m x 3.1m
  • İki başlangıç noktası sayesinde arttırılmış verimlilik
  • Medya değişimini kolaylaştırmak için iki ayrı vakum pompası
  • Baskı makinesinin ön ve arka tarafındaki iki kontrol paneli sayesinde artan iş verimliliği
  • Yeni boya besleme ünitesi, hızlı ve kolay bir şekilde boya değişim işlemini hızlandırır.
  • Banding oluşmasını engelleyen Mimaki Advance Pass System (MAPS)
  • Medyanın hizalamasını kolaylaştıran sabitleme pimleri
  • Beyaz boyada pigment çökeltisi oluşmasını engelleyen Mimaki Sirkülasyon Teknolojisi
  • Şeffaf ve renkli malzemelere beyaz boyayla çift katmanlı baskı
  • Standart olarak vakum ünitesi ve yüksek performanslı RIP yazılımı

Uygulamalar…

Geniş format Tabela & Grafik baskıları, Arkadan aydınlatmalı baskılar, Perakende PoS görselleri, Sergi grafikleri, İç mekan dekor panelleri, yaratıcı görüntüler ve çok daha fazlası…

Substrates

Akrilik, Polikarbonat, PVC, Cam, Alüminyum, Metal, Polyester, Köpük Levha, Stiren, Ahşap, Taş

Neredeyse tüm tabakalara baskı yapsa bile, tutunma seviyeleri malzemeler arasında farklılık gösterse de, boya tutunurluğuna dikkat edilmelidir.

Specifications of JFX200-2531


Head Staggered array of 2 heads
Print resolution 300, 450, 600, 900, 1,200dpi
Ink Type LH-100 (C, M, Y, K, W, CI)
LUS-120 (C, M, Y, K, W, Cl)
LUS-150 (C, M, Y, K, W)
LUS-200 (C, M, Y, K, W)
LUS-350 (C, M, Y, K, W, Cl)
Primer (PR-100, PR-200)
Ink supply system Supplied from 1-litre bottles for each colour
Ink circulation system*1 White ink circulation using Mimaki Circulation Technology (MCT)
Maximum media size 2,500 x 3,100mm
Media Dimensions (W×D) 2,500 x 3,100mm
(or 2 x 1,220 x 2,440mm panels)
Height 50mm
Weight 50 kg/m2 non concentrated load
Media absorption Absorption fixed through use of a vacuum
Number of absorption
area partitions
4 partitions
(X-axis direction)
Range
accuracy
Absolute accuracy ±0.3mm or ±0.3% of the specified range, whichever is larger
Reproducibility ±0.2mm or ±0.1% of the specified range, whichever is larger
UV device LED-UV system
Standard service life*2 Over 5,000 hours
Interface USB2.0
Safety standard VCCI class A, CE Marking, CB Report, UL (U.S. safety organization),
RoHS directive, UL 60950-1, FCC class A
Input power supply Single-phase AC200-240V 12A or less, 8A or less (Two inlets)
Power consumption 2.88 kVA, 1.92 kVA (Total: 4.8 kVA)
Installation
environment
Temperature 15°C-30°C
Relative humidity 35%-65% RH
Accuracy maintained
temperature
18°C-25°C
Temperature gradient Up to ±10°C/h
Dust Similar to standard office environments
Dimensions (W×D×H) 4,400 × 4,290 × 1,250 mm
Weight 1000 kg

Features of JFX200-2531

A choice of bed sizes and inks, including White and Clear, offers unlimited creative opportunities, with the capability to print to a wide range of substrates. Easy to use and with a compact footprint, the JFX200 Series maximizes productivity by providing the flexibility to use either one or two industry-standard sized boards, dependent on printer model.

Additional features of the JFX200-2531

Larger printing area enables printing up to 2.5 m × 3.1 m size


The larger print table is compatible with media as large as 2.5 m × 3.1 m. Moreover, the printer allows printing material as high as 50 mm and weight up to 50 kg/m2 to be used. Given its versatility and ability to handle large printing sizes and weights make the JFX200-2531 an evident choice for businesses that aspire to grow.





Toggle Print feature improves performance and productivity

The JFX200-2531 has the facility to set two separate printing origin points on the larger printing area of 2.5m x 3.1m. The Toggle Print feature allows the loading or unloading of print material on one side of the bed whilst simultaneously printing on the other side of the bed, providing considerable efficiency and productivity benefits.


The ionizer


The ionizer is a standard feature for eliminating the undesired electrostatic discharge that affects a printed image quality.

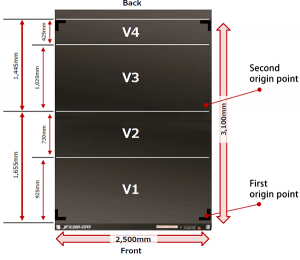

Divided suction vale

The printing material can be fixed onto the table using vacuum. Four suction areas are separately controlled by using valve switches. This capability improves the printing quality by providing stable media handling.

Click on image to enlarge it.





Vacuum pedal

This pedal allows operators to control the media vacuum power without the need to access the control panel at the front side.


Safety sensor

Safety sensors are installed at the front and back side of Y-bar. The printer stops operating when safety sensor is activated by obstacles. This function increases safety environment for operator.


JFX200 Series features

High Productivity and Print Speed

The Mimaki JFX200-2213 prints up to 8 sheets of 8ft x 4ft (2,440 x 1,220mm) media per hour.
JFX200-print speed


Layout pins eliminate alignment problems

jfx200-layout-pins
The JFX200 Series is equipped with pins and a scale to ensure accurate substrate alignment on the flatbed. By fixing the substrate to the pins, checking the placement against the scale and then editing the design data or printer setting accordingly, all alignment problems are eliminated.





Direct-to-media printing even on to thick media

jfx200-direct-to-media
Images can be printed directly onto rigid media up to 50mm thick, providing great versatility and a wider range of potential applications.







New Ink Supply Unit

jfx200-new-ink-supply
Bottles of 1 liter ink can be easily inserted from the front of the printer, speeding up the replacement process.








Various ink types are offered for a range of materials and applications

A wide range of ink types is offered to accommodate the application needs.

  • LH-100 ink: High scratch resistant ability.
  • LUS-120 & LUS-150 inks: Suitable for printing on soft materials.
  • LUS-200 ink: High weather resistant ability.
  • LUS-350 ink (new): Thermoformable.



Core technologies of JFX200-2531

Mimaki Advanced Pass System (MAPS2)

Mimaki’s unique anti-banding feature, (MAPS2) is designed to prevent banding. Swath boundaries are overprinted and boundaries prone to banding are printed with fewer ink droplets.



Waveform control technique

Each ink color has its own specific gravity and viscosity. To achieve a precise placement of ink droplets onto the media, Mimaki has designed an optimum waveform control technique that allows the printhead to jet each ink color at an optimum angle, maintaining excellent ink droplet circularity. Thanks to precise ink droplet landing, three different droplet sizes are properly used for providing optimum print results.



Mimaki clear control (MCT)

This technique adds a glossy finish on desired areas and a premium appearance to the print. However, clear-ink prints tend to be ruined by dusts adhering to uncured inks. In order to minimize dust adhesion and air bubbles on the print, MCC shortens the ink curing time by processing the clear ink print and UV-light irradiation simultaneously. MCC provides a gorgeous gloss finish and a stylish matte finish. Moreover, an embossed print is available by multiple applications of clear ink on specific areas; it adds a dimensional appearance to the print and enables representing the freshness of food or elaborate designs.
